Slotting machines
In addition to the well-known quality and reliability, we pay attention to a special price/performance ratio for our slotting machines. Thus, the purchase of our slotting machine often pays off even for smaller projects with low quantities. The most important equipment is already included.
- Solid construction and durable mechanics
- Easy to use and short set-up times
- To be operated by inexperienced operators after a short training period
- Almost no maintenance work required
- Already from basic version (... TGI) automatic feed with stop
via adjustable limit switch - Automatic tool relieve on return stroke
- Coolant system (15 liters) included
- Already from basic version (... TGI) indexing table and automatic central lubrication
- Universal tool holder with repeatable clamping
- Infinitely adjustable stroke length and stroke position
- MPS models with SIEMENS PLC control and touch panel
- Model S 315 CNC with FAGOR CNC control for up to four controlled axes
| Machine type | S 200 TGI MPS 16/200 eco |

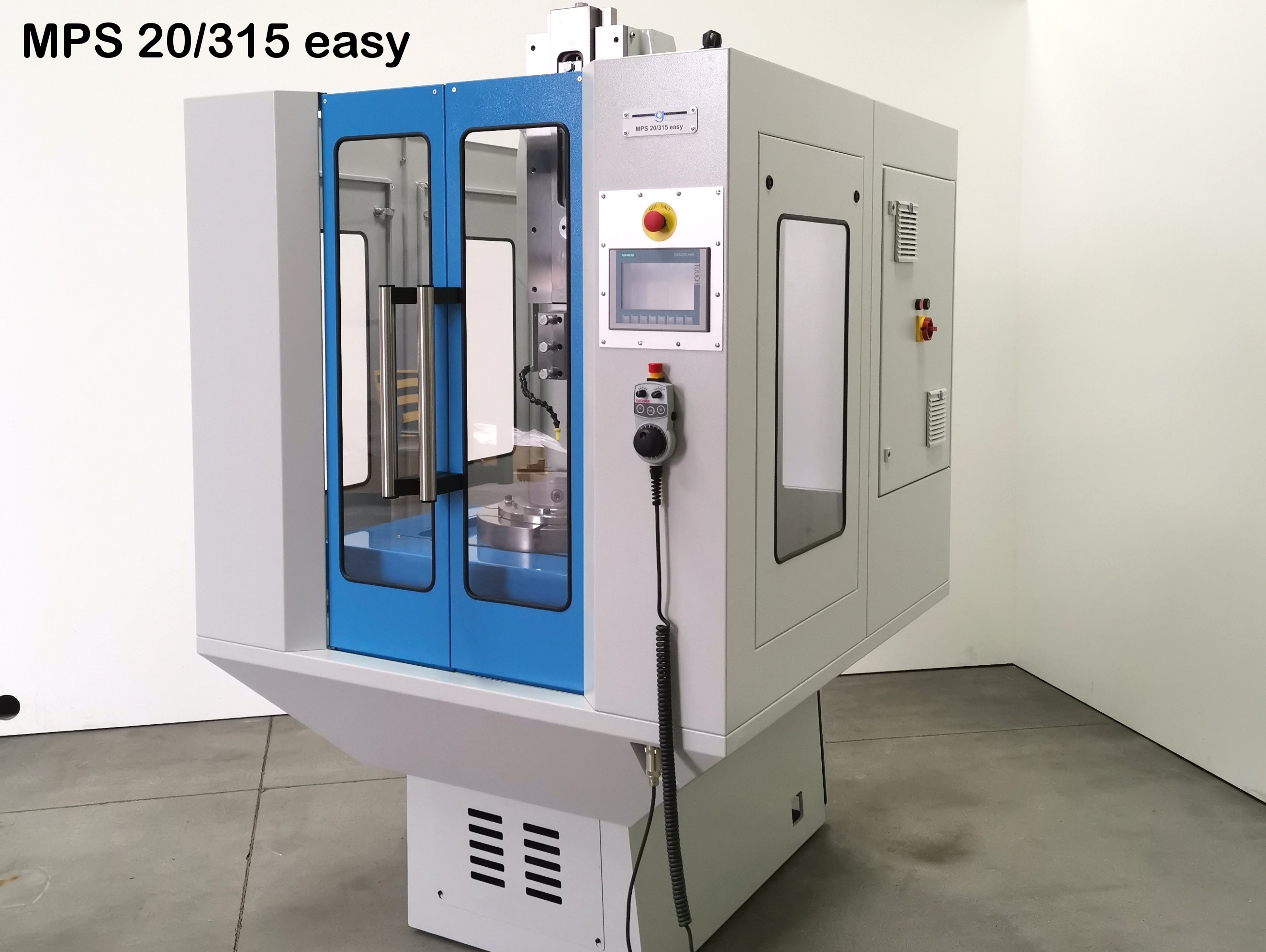

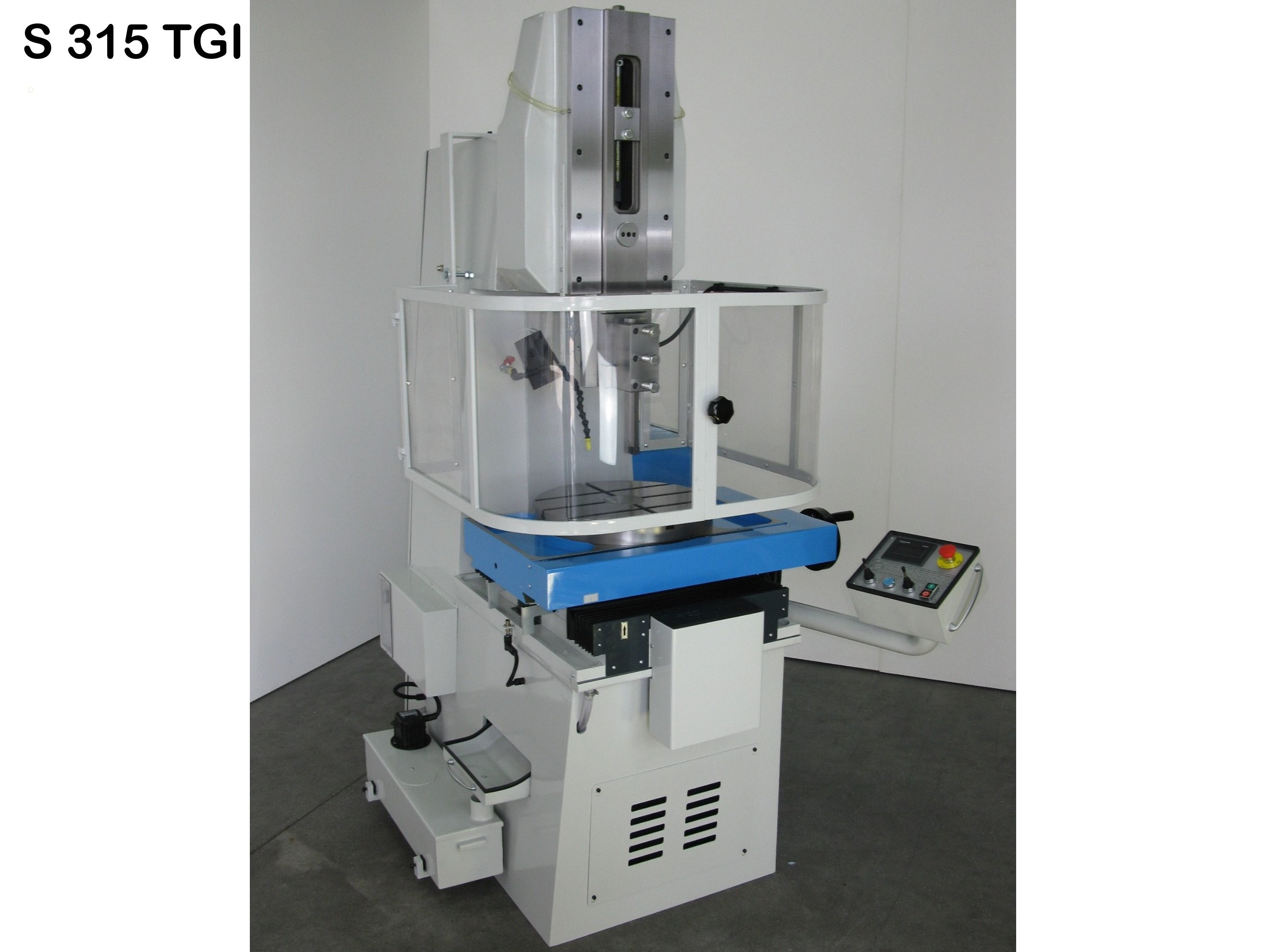

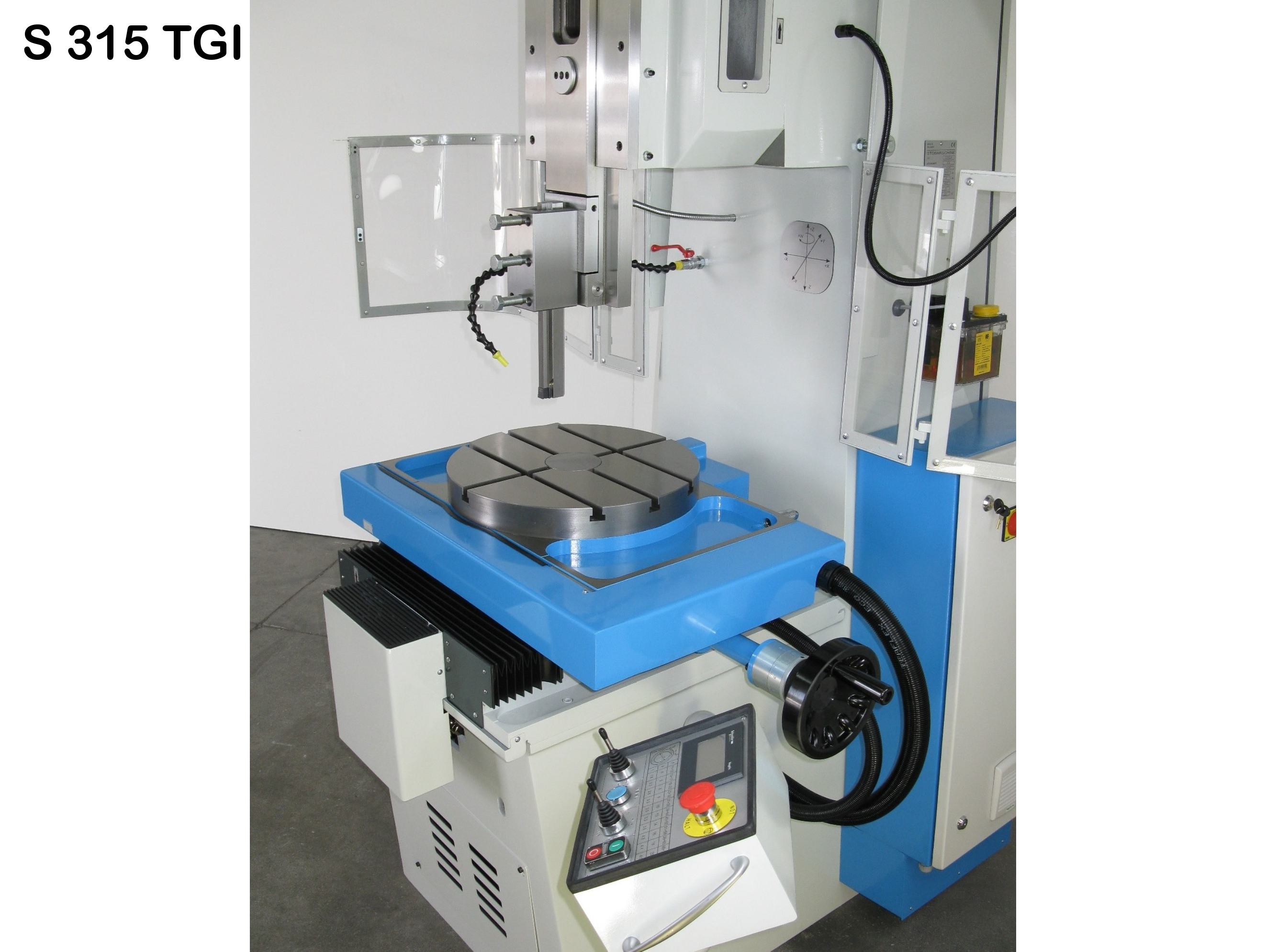

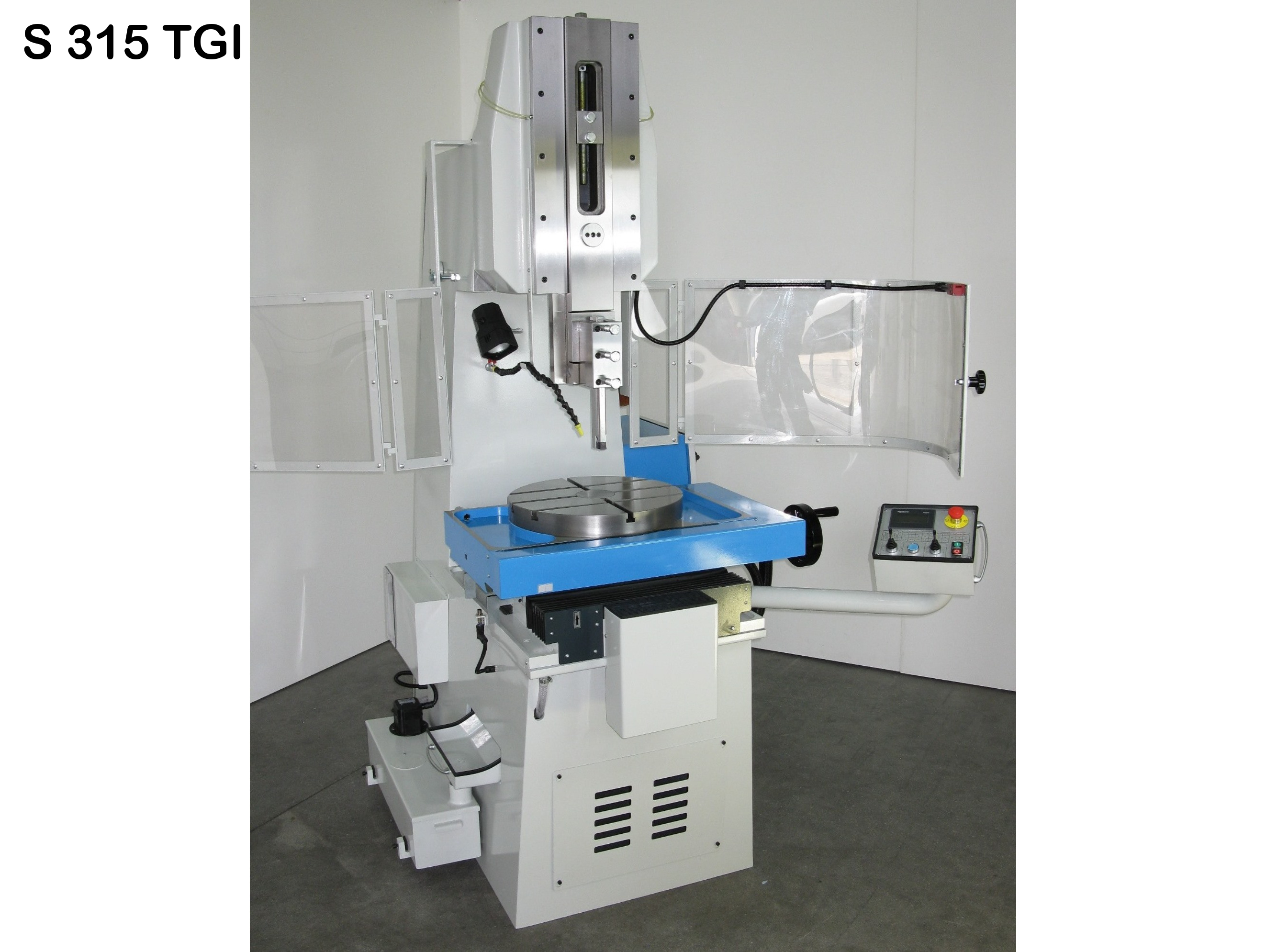

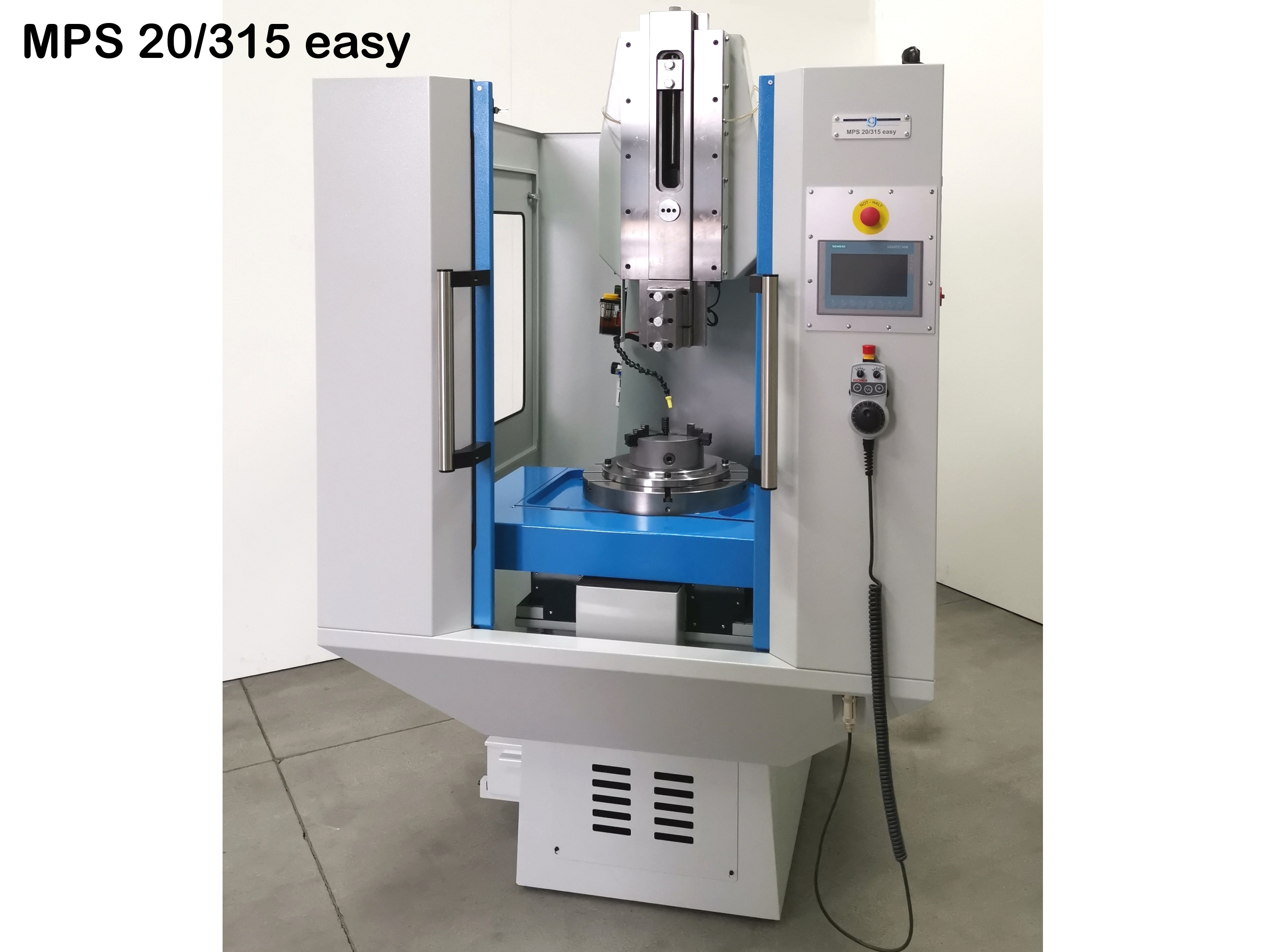

S 315 TGI MPS 20/315 easy S 315 CNC |
|---|---|---|
| Stroke (mm) | 0 - 200 | 0 - 315 |
| Strokes per minute (mm) | 17 - 60 | 17 - 60 |
| Range stroke position (mm) | 200 | 235 |
| Ram head swivels right & left (°) | 45° | 45° |
| Height between table and lower edge of ram guide (mm) | 390 | 510 |
| Distance from machine frame to front edge ram (mm) | 380 | 460 |
| Cross table with integrated indexing table (Ø) | 315 | 450 |
| Fixed divisions indexing table (only ... TGI) | 24 | 24 |
| Table movement front-back (mm) | 250 | 200 |
| Table movement left-right (mm) | 200 | 265 |
| Drive via three-phase brake motor (kw) | 4 | 4 |
| Max. floor space without packaging (WxDxH) | 840 x 1450 x 1850 | 1000 x 1600 x 2250 |
| Net weight of the machine (kg) | 875 | 1310 |
- For TGI models digital display (X, Y, W axis)
- With MPS models separate menus for internal and external gearing, polygonal machining and wider grooves with smaller cutters

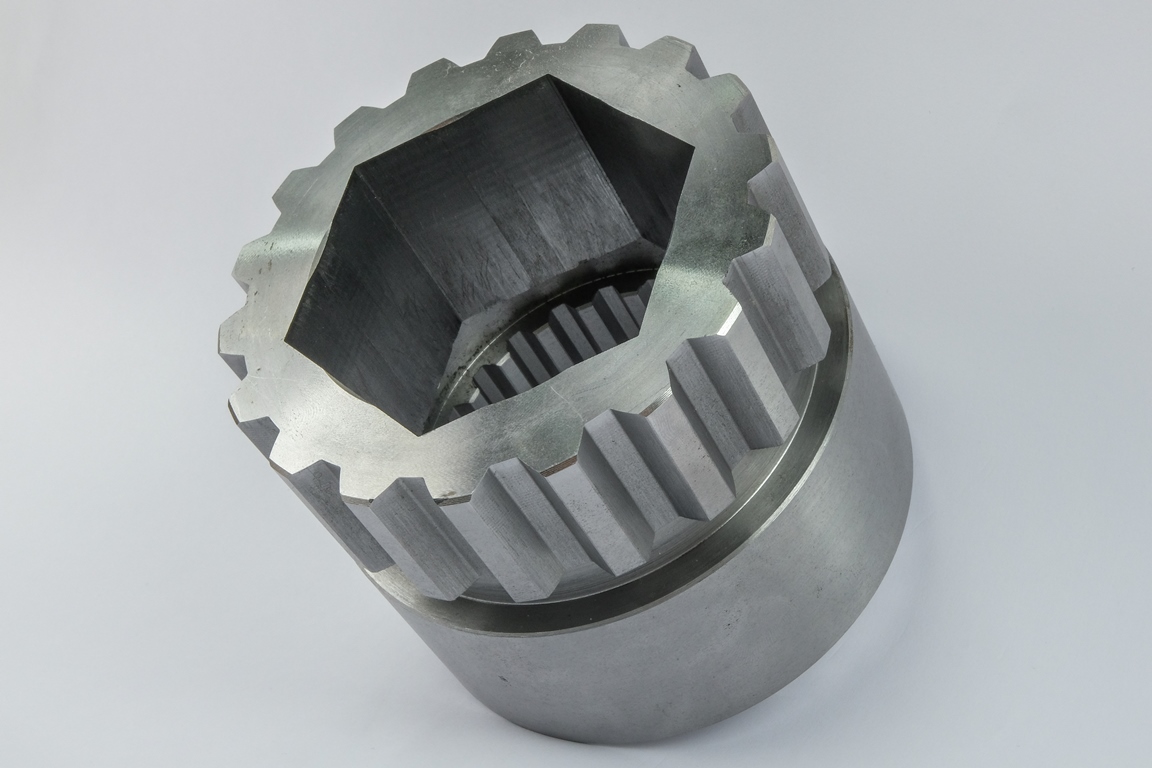

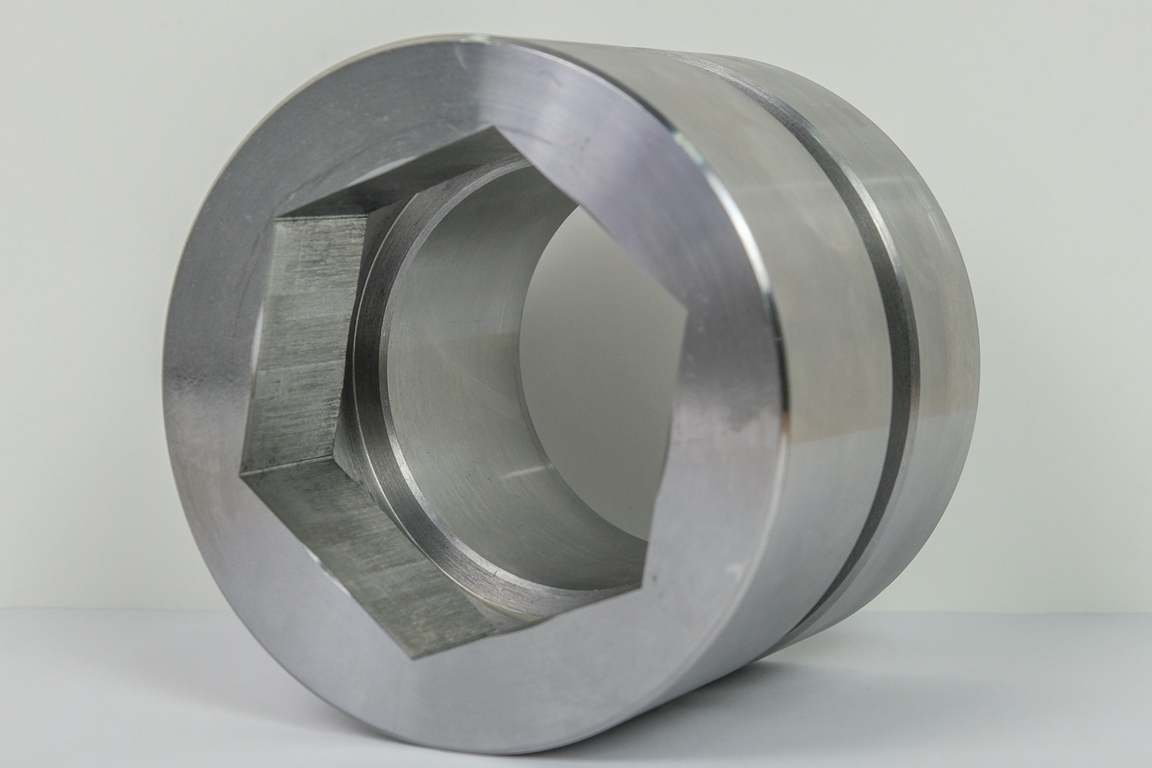

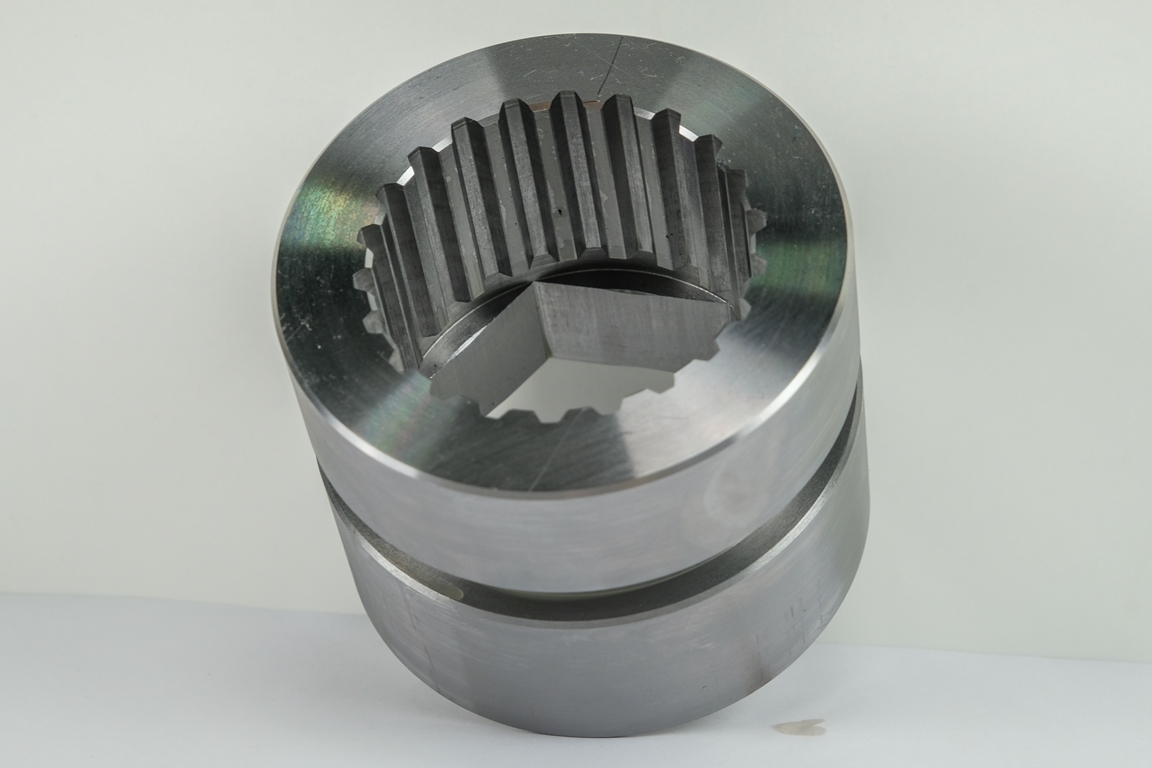

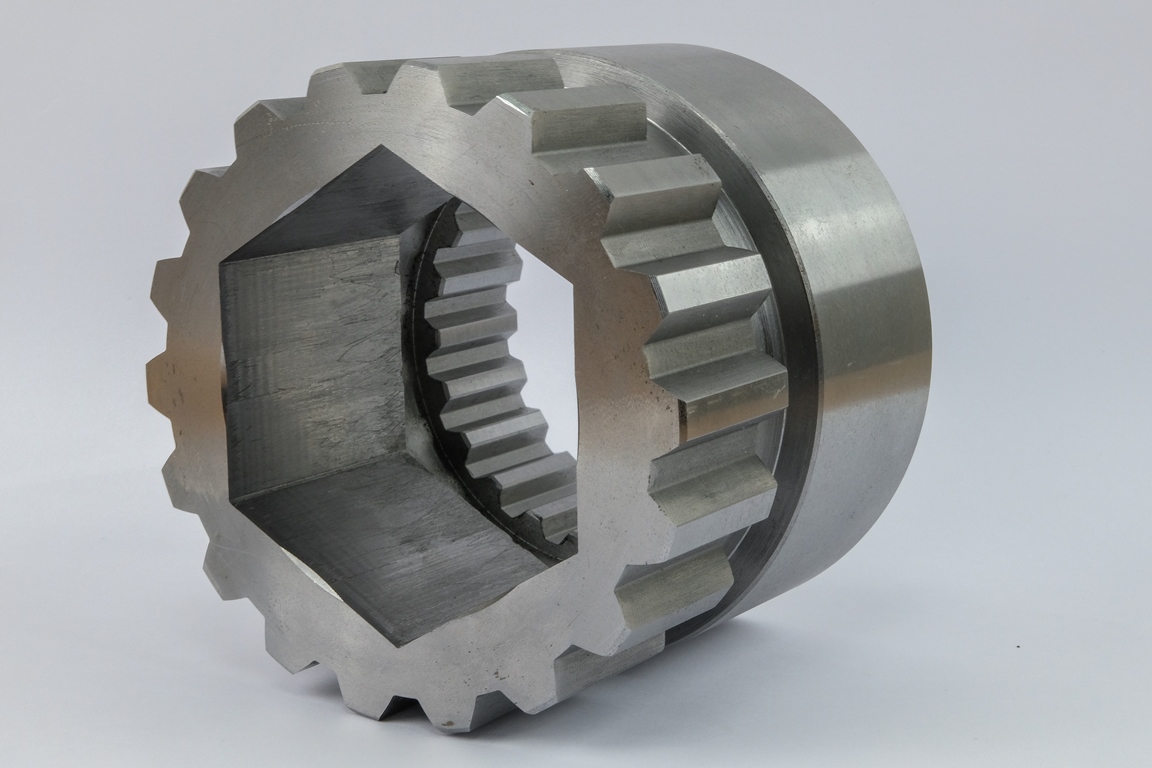

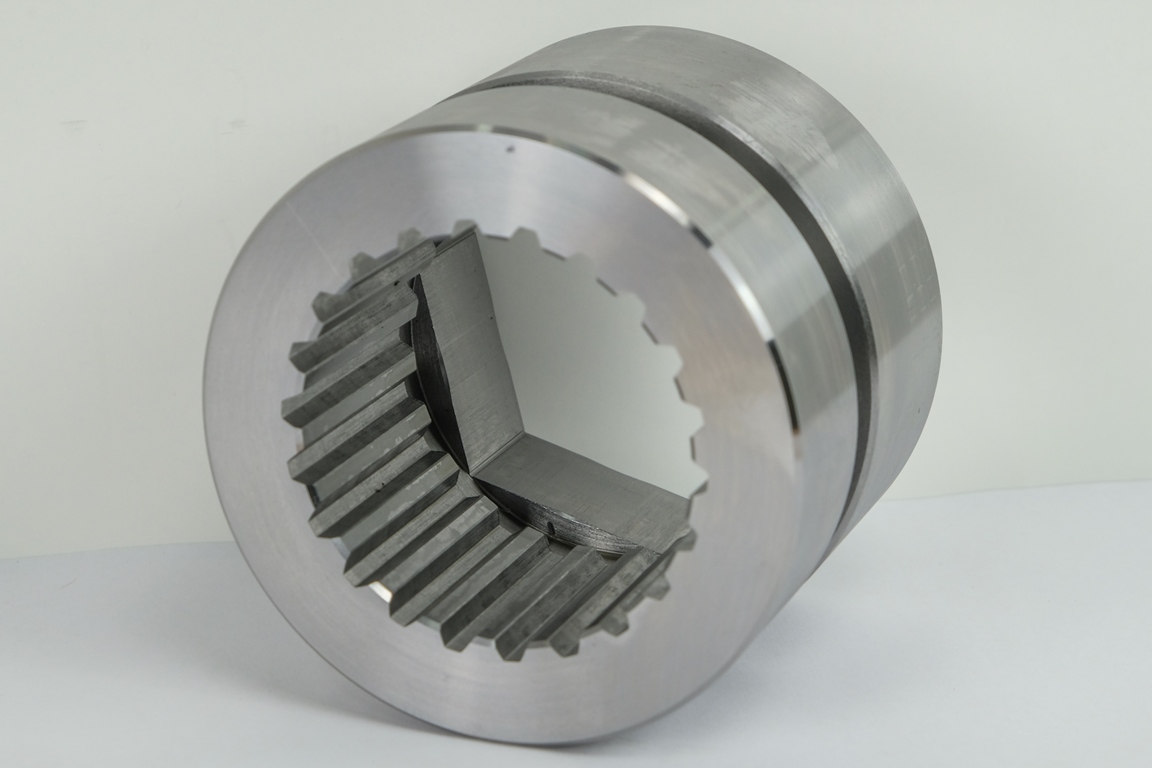

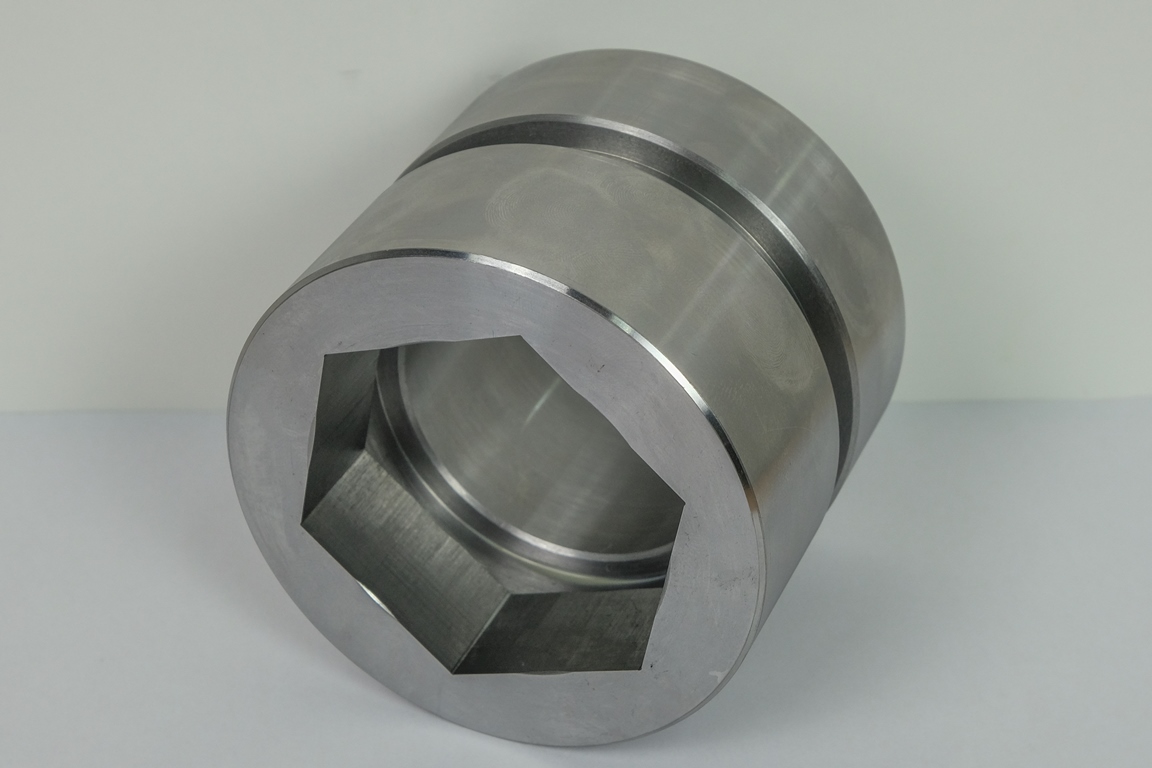

- For the production of internal profiles such as gears, hexagon or multi-spline profiles, we provide special slotting tools for you. We also offer special cutter holders or special cutters for particularly small bores on request.
